Platsa Ikea structural square

Über dieses Modell

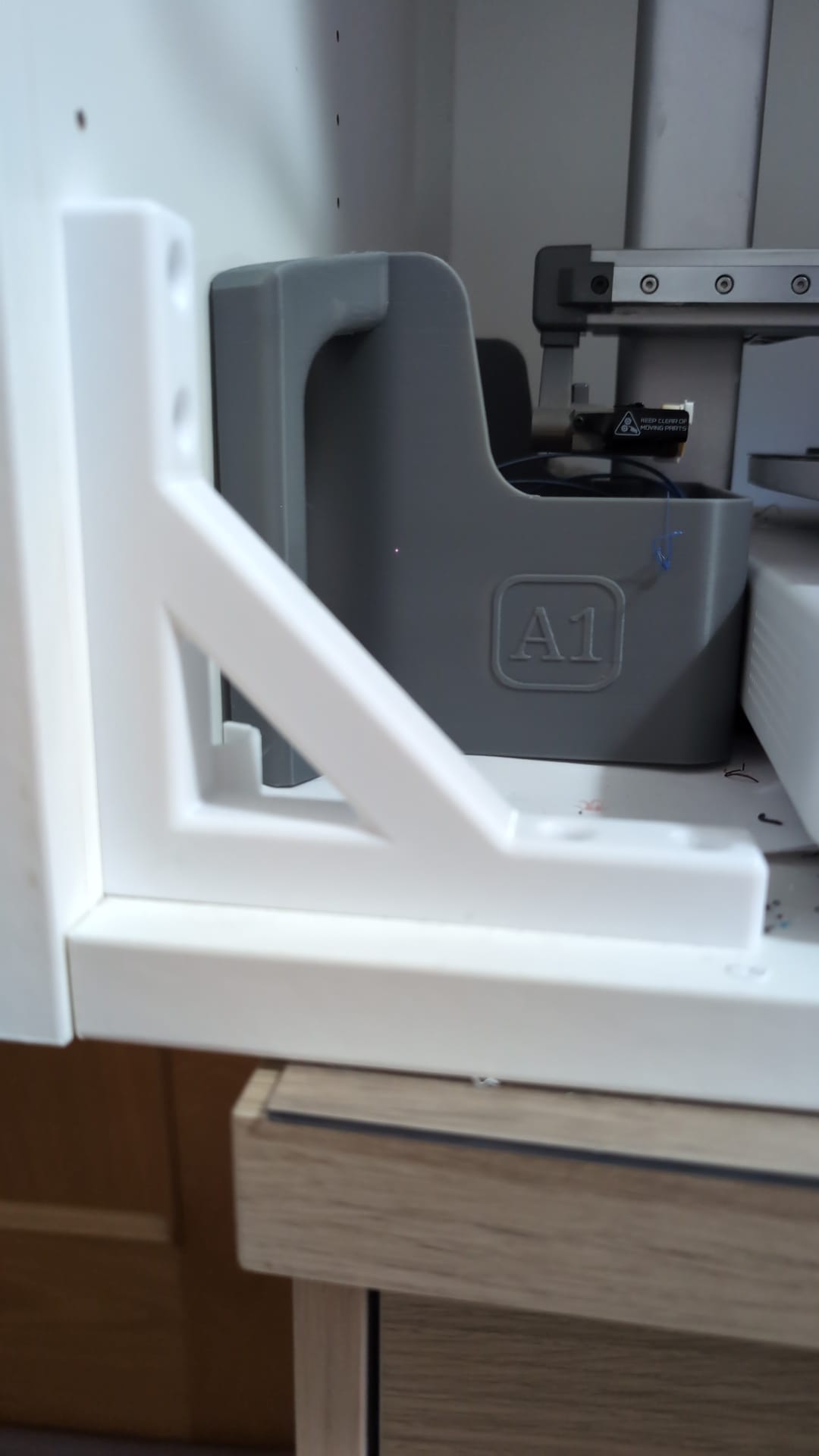

Parametrically designed structural bracket to reinforce 90-degree angles in Ikea Platsa cabinet structures. Its triangulated topology maximizes transverse rigidity, stabilizing the furniture against oscillations and dynamic loads. It is a fundamental upgrade if you use these modules as an enclosure or workstation for 3D printers, mitigating vibrations that affect print quality. Recommended Slicing Parameters (OrcaSlicer / Creality Print): Orientation: Print completely flat on the XY axis (laying on its side). This aligns the extrusion layers perpendicular to the stress vector, maximizing mechanical shear resistance. Resolution (Layer Height): 0.20 mm - 0.28 mm. High resolution on the Z-axis is not required; the priority is the thermal fusion of the layers. Perimeters (Wall Loops): Minimum 4 to 6 perimeters. In functional mechanical parts, wall thickness provides much more strength than internal infill. Infill: 25% - 35% with a continuous three-dimensional pattern like Gyroid or Cubic. Recommended Material: To support the load without suffering plastic deformation (creep) over time, I recommend using PETG (such as Flashforge or Sakata filaments) or ABS. Standard PLA can become brittle under continuous stress. Bed Adhesion: Since the part has a wide, flat base when printed on its side, apply a layer of Magigoo adhesive on the heated bed to prevent any shrinkage (warping) in the corners that could alter the bracket's perfect 90 degrees. No supports required. Tags: #IkeaHack #Platsa #FunctionalPrint #Structural #Bracket #Engineering #Kracko1_ #3DPrinting
