Print-in-Place Hinged Box - Snap-Shut Trinket, Earbud and SD Card Box, No Supports (OpenSCAD)

À propos de ce modèle

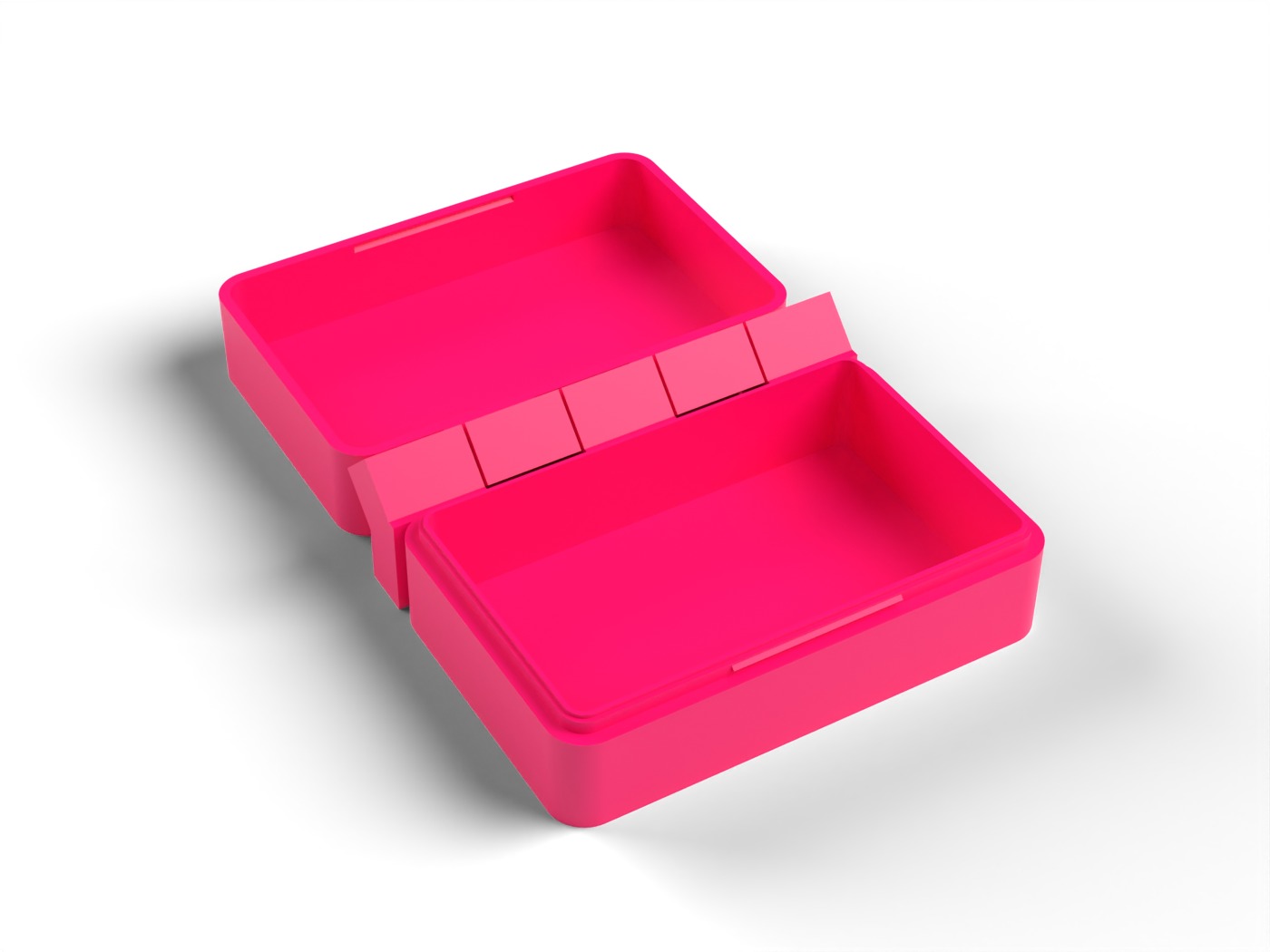

Print it, snap it free, close it: the hinge comes off the bed already working. Good for earbuds, SD cards, jewellery, pills, spare nozzles or a small gift. DETAILS • 70 x 45 x 28 mm closed; the lid closes over a lip and clicks shut on a small latch ridge. • Five-knuckle hinge with 45-degree cone pins and 0.5 mm clearance. I checked in a simulation that the lid swings the full 180 degrees without touching the base. • No supports: it prints open, base and lid side by side, and the hinge knuckles are diamonds standing on solid blocks. Bambu Studio: 57 min, 30 g, no warnings. • After printing, flex the lid gently back and forth a few times to free the hinge. CUSTOMIZE (OpenSCAD) Width, depth, height and the hinge clearance (raise it to 0.6 if your printer makes tight hinges). Designed with AI assistance (OpenSCAD). Rendered images; not printed yet.
