GOEWS Standard 6mm Hex Head Bolt

About this model

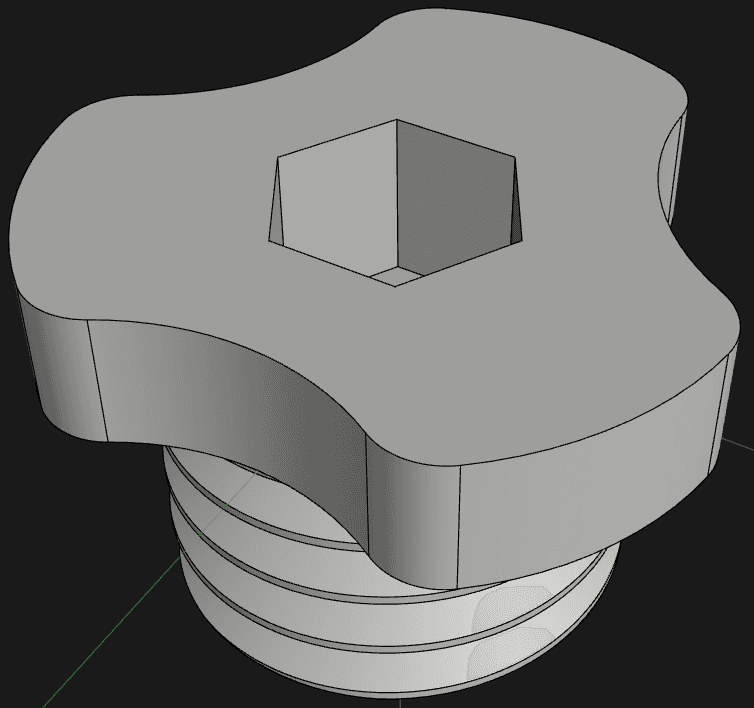

A remix of MrExo3D's GOEWS (Greatly Over Engineered Wall System) bolt with a standard-size 6mm hex socket in the head. Tighten it by hand using the lobed knob, or snug it down with a common 6mm Allen key. No special driver needed. Same length as the standard GOEWS bolt (9mm thread) and the same M14x2 GOEWS thread, so it drops in anywhere a standard bolt goes. Print settings: ABS, 0.2mm layers, 6 walls, 20% infill (3D honeycomb), 5 top / 3 bottom layers, no supports. Print head-down. The included 3MF has a plate of 15 ready for a Bambu P1S. Files: STL, STEP (for remixing), 3MF (Bambu print profile).
